Complete Guide to Microwave Oven Parts and Their Functions

Understanding the various components of a microwave oven is essential for proper maintenance, troubleshooting, and repair. This comprehensive guide details each part and its specific function in the microwave cooking process.

External Components

1. Outer Cabinet

The metal housing that contains all internal components. Made from painted steel or stainless steel, it provides structural support and electromagnetic shielding to prevent microwave leakage. The cabinet also houses ventilation systems and mounting points for installation.

2. Door Assembly

A critical safety component consisting of multiple layers including an outer panel, inner panel, and a perforated metal screen. The door prevents microwave energy from escaping while allowing users to view food during cooking. It incorporates multiple safety interlocks that disable the magnetron when opened.

3. Door Handle

The ergonomic grip used to open and close the microwave door. Modern handles are designed to withstand frequent use and may include push-button release mechanisms on some models.

4. Control Panel

The user interface containing buttons, display screen, and input controls. This includes numerical keypads, preset cooking buttons, timer controls, and power level selectors. Digital models feature LED or LCD displays showing cooking time, power levels, and status messages.

5. Display Screen

Shows cooking time, current settings, clock, and operational status. Modern units feature digital displays with various information including remaining cooking time, selected power level, and programmed functions.

6. Vent Grilles

Openings that allow hot air to escape and cool air to enter for proper ventilation. These prevent overheating of internal components and are typically located on the top, sides, or back of the unit.

Internal Cooking Chamber Components

7. Cooking Cavity

The interior chamber where food is placed for heating. Made from stainless steel or painted metal, it’s designed to contain microwave energy and reflect it throughout the cooking space. The smooth surfaces facilitate easy cleaning.

8. Cavity Light

Internal illumination system that allows users to monitor food during cooking. Usually consists of an incandescent or LED bulb housed in a protective cover to prevent damage from heat and food splatter.

9. Turntable Glass Plate

A rotating glass plate that holds food containers and ensures even heating by continuously moving food through the microwave field. Made from tempered glass to withstand heat and weight of food items.

10. Turntable Support Ring

A circular track or ring that supports the turntable plate and allows smooth rotation. Often made from plastic with roller bearings or wheels to facilitate movement.

11. Turntable Motor

The drive mechanism that rotates the turntable plate. This small motor operates at low RPM to provide steady rotation throughout the cooking cycle.

12. Waveguide Cover

A protective barrier, typically made from mica or plastic, that covers the waveguide opening. It prevents food particles and grease from entering the waveguide system while allowing microwave energy to pass through.

13. Stirrer Fan (in some models)

A rotating metal blade that helps distribute microwave energy more evenly throughout the cooking cavity. Found in models without turntables or as an additional feature for improved heating uniformity.

High-Voltage Components

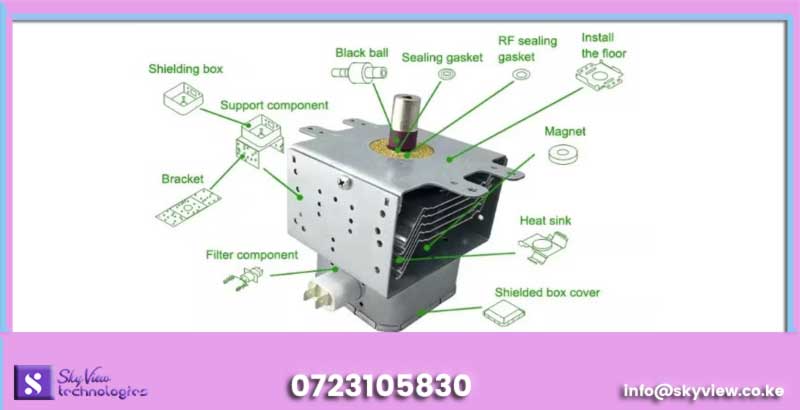

14. Magnetron

The heart of the microwave oven that generates microwave radiation at 2.45 GHz frequency. This vacuum tube converts electrical energy into electromagnetic waves that heat food by causing water molecules to vibrate rapidly.

15. High-Voltage Transformer

Steps up the standard 120V household current to approximately 2,000-4,000 volts required by the magnetron. This heavy component is one of the most expensive parts in the microwave.

16. High-Voltage Capacitor

Stores electrical energy and works with the transformer to provide the magnetron with the proper voltage and current. This component can retain dangerous electrical charge even when the unit is unplugged.

17. High-Voltage Diode

Converts alternating current (AC) to direct current (DC) for the magnetron circuit. Works in conjunction with the capacitor to create the proper electrical conditions for magnetron operation.

18. Magnetron Cooling Fan

A dedicated fan that prevents the magnetron from overheating during operation. Proper cooling is essential for magnetron longevity and consistent microwave output.

Safety and Control Systems

19. Door Interlock Switches

Multiple safety switches that prevent microwave operation when the door is open. These switches create a fail-safe system where the magnetron cannot energize unless all switches confirm the door is properly closed and latched.

20. Primary Door Latch

The main mechanical mechanism that secures the door in the closed position. Must engage properly for the safety interlocks to allow operation.

21. Secondary Door Latch

An additional safety mechanism that provides backup security for door closure. Most microwaves have multiple latches to ensure complete door sealing.

22. Door Seals/Gaskets

Flexible rubber or plastic seals around the door perimeter that prevent microwave leakage. These seals must maintain integrity to ensure safe operation and prevent electromagnetic interference.

23. Main Control Board

The electronic brain that processes user inputs and controls all microwave functions. Modern boards include microprocessors that manage timing, power levels, and safety systems.

24. Thermal Fuse

A safety device that cuts power to the microwave if excessive heat is detected. This prevents damage from overheating and potential fire hazards.

25. Thermal Cut-Out Switch

Another temperature-sensitive safety device that interrupts operation if components exceed safe operating temperatures. May reset automatically when temperatures normalize.

Power and Electrical Components

26. Power Cord

The main electrical connection that supplies power from the wall outlet to the microwave. Includes proper grounding for safety and electromagnetic compatibility.

27. Line Filter

Prevents electromagnetic interference from the microwave affecting other electronic devices and reduces interference from external sources affecting microwave operation.

28. Main Fuse

Protects the entire circuit from electrical overload. Different from the thermal fuse, this component protects against electrical faults and power surges.

29. Relay Switches

Electromagnetic switches that control various functions including magnetron operation, fan control, and light activation based on control board commands.

30. Wire Harnesses

Organized bundles of wires that connect various components throughout the microwave. Proper routing and insulation are critical for safe operation.

Ventilation and Cooling Systems

31. Exhaust Fan

Removes hot air and cooking odors from the cavity and internal components. May have multiple speeds depending on cooking requirements and component temperatures.

32. Air Intake Vents

Allow cool air to enter the microwave for component cooling. Proper airflow is essential for preventing overheating of electronic components.

33. Exhaust Ductwork

Channels for directing hot air out of the microwave. In over-range models, this may connect to external venting systems.

Mounting and Structural Components

34. Mounting Brackets

Hardware used to secure the microwave in built-in installations or over-range mounting. Must be properly rated for the weight and vibration of microwave operation.

35. Leveling Feet

Adjustable supports that ensure the microwave sits level and stable. Proper leveling is important for turntable operation and door alignment.

36. Internal Bracing

Structural supports within the cabinet that maintain component positioning and reduce vibration during operation.

Understanding Component Interactions

These components work together in a precisely orchestrated system. The control board interprets user inputs and activates the high-voltage system, which powers the magnetron to generate microwaves. Safety systems continuously monitor door closure and component temperatures, while the ventilation system maintains safe operating conditions.

Regular maintenance of these components, particularly cleaning of vents, checking door seals, and ensuring proper turntable operation, helps maintain optimal performance and extends the life of your microwave oven. Understanding these parts also helps in troubleshooting common problems and knowing when professional service is required for safe repairs.

Professional technicians must understand the interaction between these components to properly diagnose issues and perform safe repairs, particularly when dealing with high-voltage components that can pose serious safety risks if mishandled.
